ANT-2G4L2 is a loop antenna for 2.4 GHz operation. The connector is MHF (IPEX) and can connect directly to the module.
It is not designed for outdoor use, however its performance has been optimised for embedding inside remote unit, i.e. plastic case.
Suitable for STD-503.
Features
- 2.4 GHz operation
- Mounting hole
- Not for outdoor use
- MHF (IPEX) connector
Specifications
| Parameter | Specification | Remarks |
|---|---|---|
| Frequency band | 2.4 GHz | |
| Antenna type | Loop antenna | |
| Impedance | 50 ohms | |
| VSWR | ≦ 1.4 | |
| Gain | 1.89 dBi | |
| Connector | MHF connector | |
| Cable length | 200 mm | |
| Loop diameter | 33mm (Inner), 43mm (Outer) |

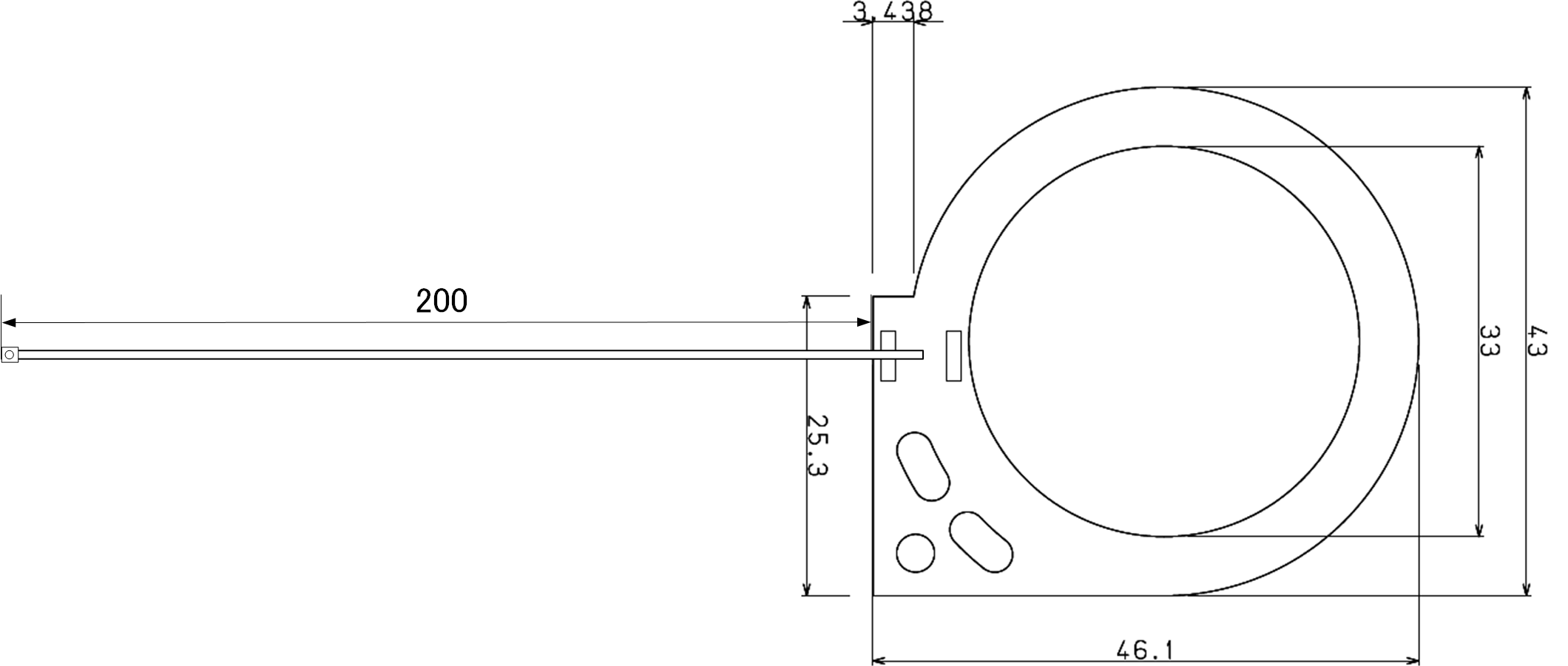

External View
