Why the antenna is never "just another piece of metal"
Treating the antenna as an after thought.
- Product engineers may want to integrate wireless capability for sending data, audio or ON-OFF signals by radio.
- While care is given to aspects such as component placement and ergonomics, the antenna is often treated as a "left over" space problem.
Antenna size matters.
- An antenna utilises resonance which requires it to be the correct size.
- A quick size check by the product engineer can alert if the enclosure or space can contain the antenna.
Antennas need "breathing space".
- Antennas generate electromagnetic energy which spread outwards.
- Metal and other objects in this space can short out, absorb or reflect back some of this energy.

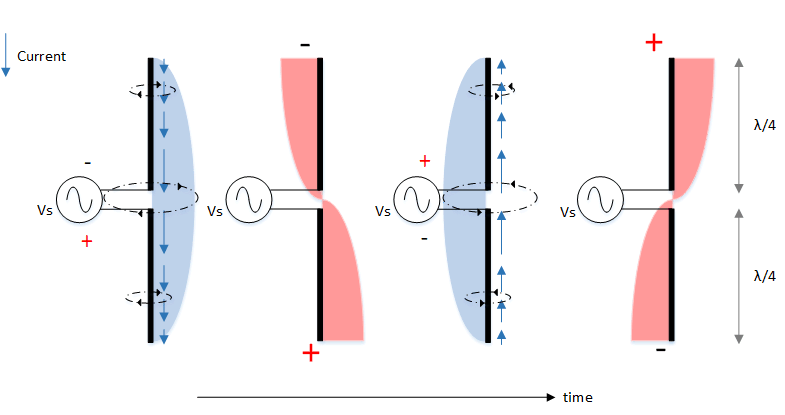

How antenna electric and magnetic fields are generated. |
Key takeaways.
By providing an initial grounding in antenna theory, our introductory article helps you:
1. Understand energy conversion: This is the antenna - it can be setup to do this in the most efficient way.
2. Visualise radiation fields: see where maximum radiation occurs (e.g. dipole) and how that might influence the final product design.
3. Engineering reasoning: Not just repeatedly testing out "trial and error" solutions.
Do not treat the antenna as "just another piece of metal". It's role is to make sure your signal gets to the receiver.
