434 MHz swivel antenna for outdoor use. Connection is SMA male.
Antenna adjustment and installation procedure
Features
- 434 MHz operation
- Direction / Polarisation: Omni-directional
- Outdoor use
- SMA male
Specifications
Parameter | Specification | Remarks |
---|---|---|
Frequency band | 434 MHz | VSWR: ≤ 2 |
Antenna type | Swivel antenna | Omni-directional, vertical polarization |
Impedance | 50 ohms | |
VSWR | ≦ 2 | |
Gain | ≦ 2 dBi | |
Connector | SMA connector | |
Length | 115 mm (antenna) | Including connector |
IP Rating | IP67 |

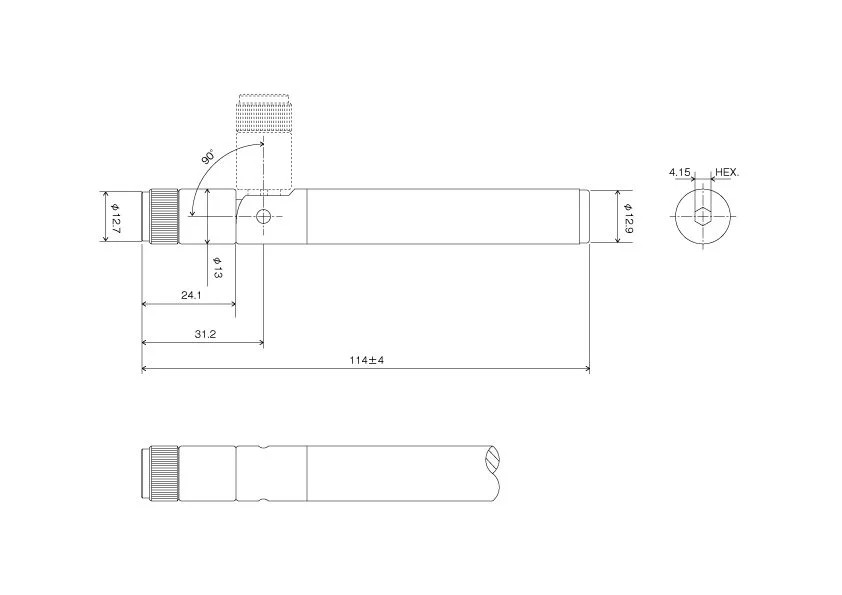

External View
ANT-400-SFW-N
