The CBL-SMA-SMABJW-50 is an extension cable. Connection is from an SMA male to an SMA female. The flange allows the cable to be mounted on a case.
Features
- SMA male to an SMA female
- RG-316 cable
- 0.5 m size
- Can be mounted onto case using nut and washer
Specifications
| Parameter | Specification | Remarks |
|---|---|---|
| Cable Length | 0.5 m | Excluding connector |
| Coaxial cable (50Ω) | RG-316 | |
| Connector | SMA male / SMA female | |
| Waterproof | No |

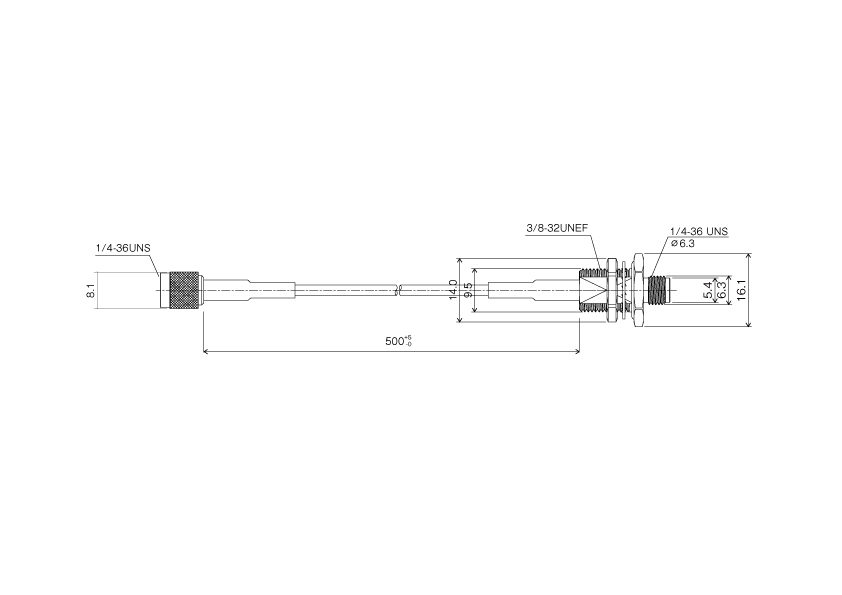

External View
CBL-SMA-SMABJW-50 50 cm dimension
