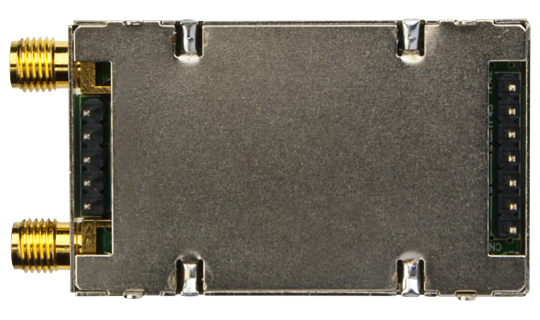

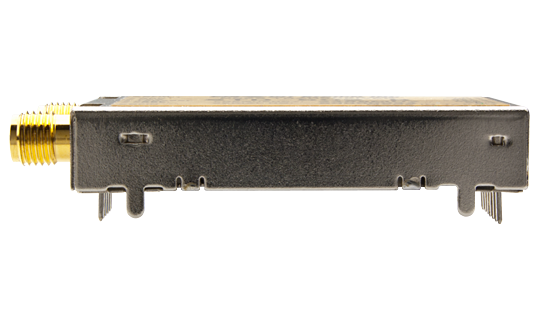

DSSS Low Power Radio TransceiverSTD-502-R
The STD-502-R 2.4 GHz transceiver uses direct sequence spread spectrum (DSSS) modulation and a true diversity circuit, enabling reliable communications even in the congested 2.4 GHz band.
The STD-502-R complies with the European ETSI EN300440, U.S. FCC Part 15.247, Canadian ISED RSS-210 standards and Japanese ARIB STD-T66, making it ready for the global market.
Low power consumption and battery operation give the STD-502-R the performance demanded for applications where long range and reliability are required.
The transceiver uses a transparent data interface to enable users to communicate using their own protocols.
The modules can be set easily via the UART interface using dedicated commands.
Circuit Design developed an onboard ASIC containing SS correlator (a key part of spread spectrum communications) instead of relying upon conventional RFICs. This ensures long term supply for industrial applications.
- CE, FCC, ISED and ARIB conformity certification
- Uses direct sequence spread spectrum (DSSS) modulation
- A true diversity receiver containing two built-in receiver circuits
- Module settings using dedicated commands
- Data communication using transparent interface
- Low power operation
- 77 channels
- Communication LOS: 300 m
- Industrial telecontrol
- Telemetry Systems
|Applicable standard||EN 300 440
FCC part 15.247
|Transmission method||Direct sequence spread spectrum|
|Frequency||2402.5 to 2478.5 MHz|
|Number of RF channels||77|
|Channel spacing||1 MHz|
|Data bit rate||9.6 k / 19.2 kbps|
|Chip rate||144 k / 288 kcps|

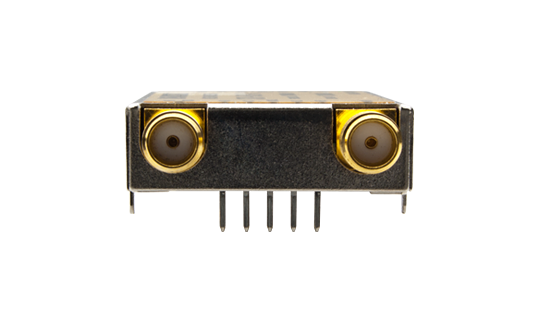

|RF connectors||RP-SMA x 2||Nominal 50 ohm|
|Spreading code||15 Chips||M-sequence
( 111101010001100 )
|-20 to +65 degree C||No dew condensation|
|Supply voltage||3.3 to 5.5 V DC|
|Supply current||TX: 55 mA typ.
RX: 65 mA typ.
|Dimension||50 x 30 x 9 mm||Not including connectors|
|RF output power||< 10 mW||e.i.r.p.|
|TX data input||Digital L = 0 to 0.25
H = Vref – 0.4 to Vref
|RF Input level||< -13 dBm|
|Receiver sensitivity||-93 dBm||19.2 kbps, BER 0.1%|
|RX data output||Digital L = GND, H = Vref|
|RF Data Interface|
|Port||DO / DI / CLK|
|Data bit rate||9.6 k / 19.2 kbps||Sync: CLK terminal|
|Port||TXD / RXD|
|Interface||UART communication (RS232C format)|
|UART bit rate||19.2 k / 38.4 k / 57.6 kbps|
|Other parameters||Data length: 8 bits / Parity (None) / Stop bits 2|
Evaluation Tools: TB-STD502
The TB-STD502 evaluation board allows you to evaluate our STD-502 module and perform range, data packet and switching signal transmission tests. Onboard LEDs, CH switch, ID switch and push buttons allow you to easily make switching signal tests and packet tests with packet error indication.
The boards do not include both modules STD-502. Please order them separately if needed.
- 4-push buttons and output LEDs.
- Channel and ID switches
- External input/output pins
- Receiving antenna LED indicatorPacket test function
- Transmission mode DIP switch setting
