The UHF FM narrowband compact radio module STD-602-429 is suitable for industrial remote control and telemetry applications operating in the 429 MHz band. This module which is targeted for use in Japan, has the Type Certification of Construction Design (Giteki mark) meaning no radio licence or registration is required to use it. The STD-602-429 has a simple serial interface and allows own communication protocol to be used. The RF Power, Data rate and Channel can be set through the use of dedicated serial commands.
As required by the Japanese regulations, the carrier sensing function is also implemented and automatically executed.
Features
- ARIB STD-T67 compliant
- Contains the Type Certification of Construction Design (Giteki mark).
- 429 MHz band
- Small 36 x 26 x 6.1 mm
- Low power operation
- 27 mA (TX 10 mW / 3 V)
- 17 mA (RX) - Transparent interface for data input and output.
- Command control interface
Applications
- Industrial remote control system
- Telemetry Systems
- Monitoring system
Specifications
STD-602-429 429 MHz
Common
| Parameter | Specification | Remarks |
|---|---|---|
| Applicable standard | ARIB STD-T67 | Type Certification of Construction Design (Giteki mark) acquired |
| Communication method | Simplex, Half Duplex | |
| Emission type | F1D | FSK narrow |
| Frequency | 429.246875 to 429.915625 MHz | |
| Number of RF channels | 40 channels 79 channels 96 channels |
4,800 bps 2,400 bps (TX 5, 10 mW) 2,400 bps (TX 1 mW) |
| Channel step | 12.5 kHz 6.25 kHz |
4,800 bps 2,400 bps |
| RF bit rate | 4,800 / 2,400 bps | |
| Supply voltage | 3.0 to 5.0 V DC | |
| Supply current | 27 mA typ. (TX 10 mW) 17 mA typ. (RX) |
|
| Operating temperature range | -20 to +65 degree C | |
| Dimensions | 36 x 26 x 6.1 mm | |
| Weight | 13 g |
Transmitter Part
| Parameter | Specification | Remarks |
|---|---|---|
| RF output power | 10 / 5 / 1 mW | Conducted 50 ohm |
| Deviation | +/-2.4 kHz +/-1.2 kHz |
PN9 4,800 bps PN9 2,400 bps |
| Spurious emission | < -27 dBm | |
| Adjacent channel leakage power | > 40 dBc | PN9 2,400 / 4,800 bps |
Receiver Part
| Parameter | Specification | Remarks |
|---|---|---|
| Receiver type | Single superheterodyne | |
| Maximum input level | 10 dBm | |
| Receiver sensitivity | -114 dBm (4,800 bps) | BER 1% |
| Adjacent channel selectivity | 50 dB (4,800 bps) | +/-12.5 kHz |
| Blocking | 75 dB | +/-1 MHz |
| Spurious radiation | < -54 dBm |
Interface
| Parameter | Specification | Remarks |
|---|---|---|
| Data Interface ( DI / DO ) |
L = GND H = VCC, Asynchronous | Transparent |
| Command interface (TXD / RXD) |
UART 19,200 bps 8 data bit, No parity, 1 stop bit |
*Specifications are subject to change without prior notice

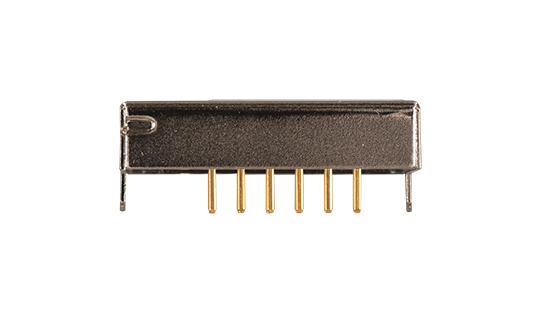

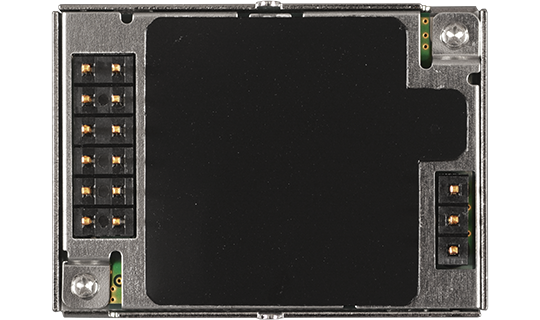

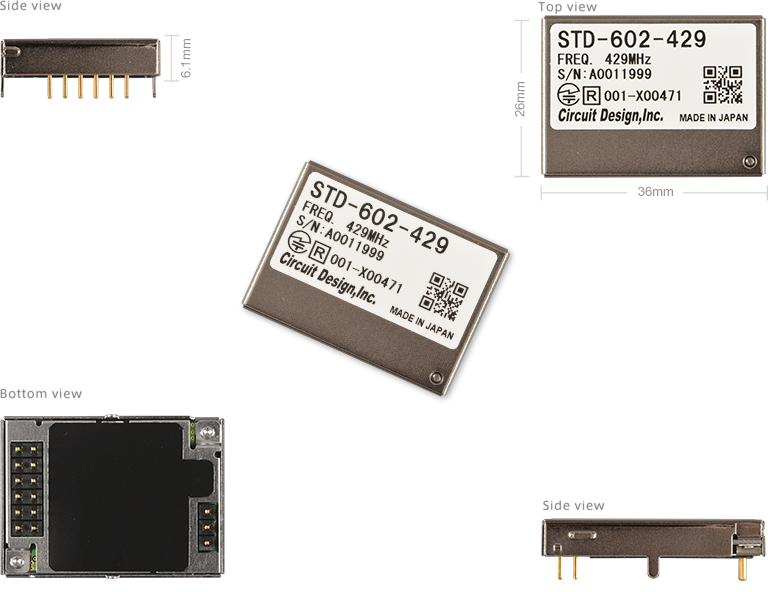

External View

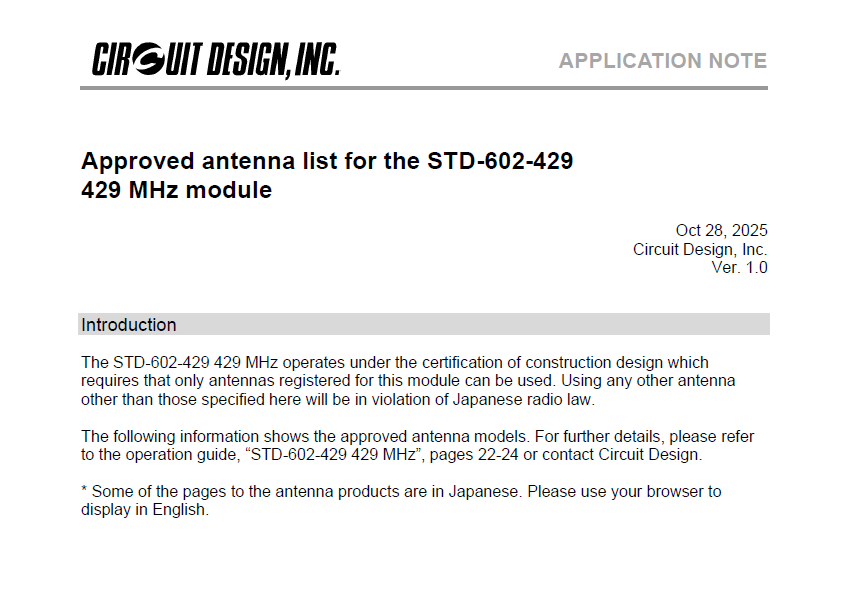

Operation Guides
| Version 1.0 (STD-602-429 429 MHz) |  |
|---|
