| Model name | TX / RX | Ch setting |
|---|---|---|
| CDP-TX-02E 434 MHz | Transmitter | Dip switches |
| CDP-RX-02E 434 MHz | Receiver | Dip switches |
| CDP-TX-02EP 434 MHz | Transmitter | Pin connectors |
| CDP-RX-02EP 434 MHz | Receiver | Pin connectors |

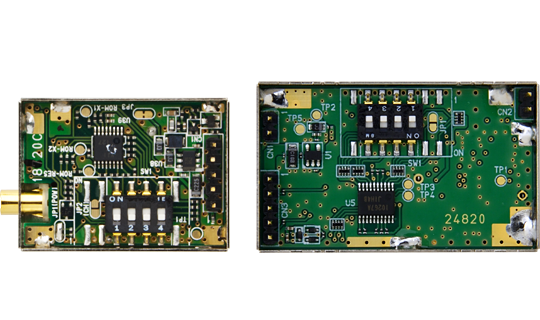

For the CDP-TX-02E, CDP-RX-02E, frequency setting is performed with the 4-bit switches. Instead of these 4-bit switches, the CDP-TX-02EP, CDP-RX-02EP have 8-pin connectors for frequency setting, making it possible to set the channels externally.
There are no other technical and mechanical differences between CDP-02E and CDP-02EP.
The CDP-TX-02E/EP and CDP-RX-02E/EP are RoHS compliant, embedded industrial narrow band FM radio transmitter and receiver.
They are suitable for various application fields such as wireless data communication, remote control, telemetry or wireless security systems. They are easy to use and integrate into application systems.
Both CDP-TX-02E / EP and CDP-RX-02E / EP are equipped with a frequency synthesizer system with micro controller. Available frequency ranges are from 32 preprogrammed channels. The compact size, low operating voltage and frequency selectability of the CDP-02E make it ideal for various applications where its interference rejection and propagation distance range is far better than similar RF modules based on wide band SAW-resonator frequency generators.
The CDP-RX-02E / EP receiver has excellent blocking and adjacent channel selectivity.
Features
- 10 mW/1 mW RF power selectable
- Wide operating range (-20 to +60 degree C)
- Pre-programmed 32 ch
- Narrow band FM 25 kHz step
- PLL controlled VCO, data rate 4,800 bps
- Receiver sensitivity -120 dBm, 600 m operating range
- Receiver category 1
- RED compliant (EN 300 220)
Applications
- Industrial remote control
- Factory automation M2M
- Security systems
- Alarms
- Telemetry systems
Other products related to this product
Specifications
Common
| Parameter | Specification | Remarks |
|---|---|---|
| Applicable standard | RED compliant (EN 300 220) |
|
| Communication method | One way | |
| Emission type | F1D | FSK narrow |
| Oscillation system | PLL controlled VCO | |
| Frequency | 433.875 to 434.650 MHz | |
| Number of RF channels | 32 channels | 25 kHz step |
| Channel spacing | 25 kHz | |
| RF bit rate | 300 to 4,800 bps | |
| Pulse width | Min. 208 us / Max. 20 ms | |
| Operating temperature range | -20 to +60 degree C | No dew condensation |
Transmitter Part
| Parameter | Specification | Remarks |
|---|---|---|
| Transmitter type | PLL synthesizer | |
| RF output power | 10 mW / 1 mW | |
| Data input | Digital L = GND, H = Vcc | |
| Deviation | +/-2.1 kHz | PN9 4,800 bps |
| Spurious emission | < -54 dBm (47 – 74 M, 87.5 – 118 M, 174 – 230 M, 470 – 862 MHz) < -36 dBm (Other frequencies < 1000 MHz) < -30 dBm (> 1000 MHz) |
|
| Adjacent channel power | < -37 dBm | |
| Supply voltage | 3.0 to 12 V DC | |
| Supply current | 43 mA typ. 33 mA typ. |
3 V / 10 mW 3 V / 1 mW |
| Dimensions | 36 x 26 x 10 mm | excluding protrusion |
| Weight | 14 g | without antenna |
* Antenna, ANT-LEA-01-R, is included.
Receiver Part
| Parameter | Specification | Remarks |
|---|---|---|
| Receiver type | Double Superheterodyne PLL synthesizer | |
| Receiver category | 1 | |
| Receiver Sensitivity | -120 dBm typ. (12 dB SINAD) -120 dBm typ. (BER 1%) |
|
| Adjacent channel selectivity | -50 dBm | +/-25 kHz |
| Blocking | -20 dBm | |
| Spurious radiation | < -60 dBm (< 1000 MHz) < -50 dBm (> 1000 MHz) |
|
| Data output | Digital L = GND, H = Vcc | |
| Supply Voltage | 3.0 to 12V DC | |
| Supply current | 30 mA typ. 33 mA typ. |
3 V 12 V |
| Dimensions | 50 x 30 x 9mm | excluding protrusion |
| Weight | 20 g |
Specifications are subject to change without prior notice
External View
CDP-TX-02E
* Antenna, ANT-LEA-01-R, is included.
CDP-RX-02E
CDP-TX-02EP
The external view is currently being prepared.
* Antenna, ANT-LEA-01-R, is included.
CDP-RX-02EP
Operation Guides
| Version 1.2 (CDP-TX-02E/EP 434 MHz) |  |
|---|---|
| Version 1.2 (CDP-RX-02E/EP 434 MHz) | |
Application Notes
| Design guide for RF transmitter and receiver | |
|---|---|
| Notes for radio module control using a CPU | |
Declaration of Conformity
| CDP-TX-02E/EP 434 MHz | |
|---|---|
| CDP-RX-02E/EP 434 MHz | |
Evaluation Tools: ECB-03, DCB-03
The test board ECB-03 (Encoder board) and DCB-03 (Decoder board) will save you time and effort for evaluating CDP-TX-02E, CDP-RX-02E modules.
Communication range can be tested easily by checking the LEDs on the decoder board.
ECB-03 and DCB-03 do not include modules CDP-TX-02E, CDP-RX-02E. Please make sure to order them if needed.
Features of the Status Translation
- TX board: 8 inputs (optocoupler) & RX board: 8 outputs (photo MOS relays).
- Manual and automatic channel control
- Different transmission types (test mode, continuous mode, triggered mode)
- Learning and pairing mode (TX 1 : RX N or TX N : RX 1)
- 8 monitoring LEDs on the receiver board
- Data packets with CRC16 checksum
- Fail safe mode with max error count
- Calibrated to -116dBm for automatic channel control
Features of the Development Set
- Fully programmable Atmel® ATMEGA324P over ISP port
- 32 KB internal flash and 2 KB EEPROM for original software
- 2 UART ports for CDP-02 and debugging/data transmission and reception
- 3 DIP switches for configuration
- Complete documented source code for status transmission
Features
- 4-push buttons and output LEDs.
- Encoder and decoder IC MSM6305 with the user selectable 1024 address codes.
External View
ECB-03
* Antenna, ANT-LEA-01-R, is included.
DCB-03
