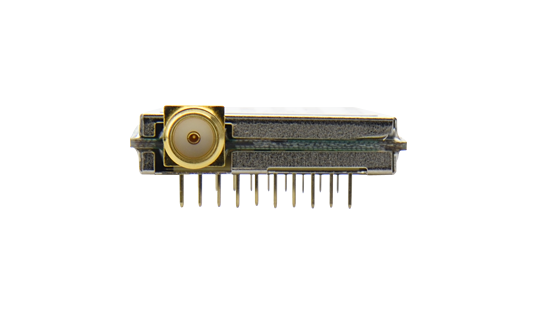

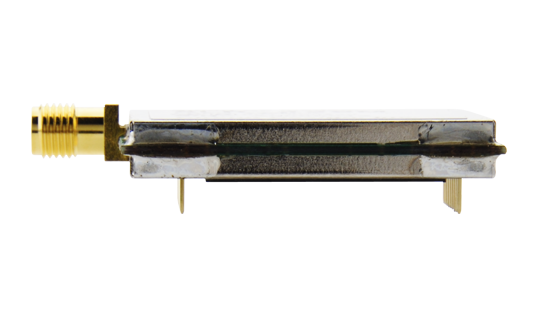

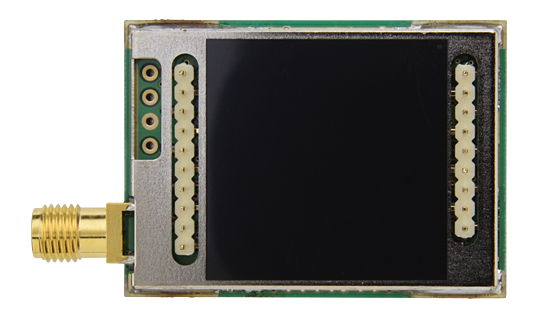

Low Power Long Range Radio ModemSLR-434M
The SLR-434M smart modem is a compact, easy to use embedded radio modem operating in the 434 MHz ISM band. It allows conventional FSK mode communication and also communication using LoRa® mode providing long range at lower bit rate.
With high receiving sensitivity, it is possible to transmit up to a few km or more with line of sight using low RF output power.
By connecting to an external CPU or PC with UART interface, the user can send data or design simple control systems using Circuit Design's dedicated command protocol for industrial application. It is also possible to process up to 8 switching signals.
Applications include data transmission, telemetry and telecontrol.
* Under certain conditions when LoRa modulation is used in conjunction with low data rate, higher sensitivity is achieved and longer range becomes possible. When used in conventional FSK mode, up to 600 m (LOS) range should be expected.
The SLR-434M contains a Semtech's LoRa® wireless RFIC.
The LoRa® Mark and LoRa Logo are trademarks of Semtech Corporation.
- RED compliant (EN 300 220)
- Extremely long range operation achieved by LoRa® mode.
- Switchable between FSK mode and LoRa® mode
- UART interface (COM port, RS232)
- Simple command protocol for development of user program.
- Transmission of up to 8 switching signals using IO terminals.
- Compact size
- Low voltage and current consumption
- Higher resistance to urban noise, enabling long range operation compared to conventional FSK
- 429 MHz version available (Japan)
- Data transmission in buildings, air conditioning control
- Debris flow monitoring at mudslide control dams
- River water level / dam monitoring
- Greenhouse temperature / humidity monitoring and control
- Sensor data transmission from underground or manhole
- Monitoring of tunnels and bridge condition
- Landslide warning
Other products related to this product
Embedded Radio Modem
|Standard||EN 300 220|
|RF output power||< 10 mW||Nominal, Contact (50 Ω), SMA|
|Communication method||Simplex or half duplex|
|RF bit rate||15 to 245 bps (LoRa® mode)
4800 bps (FSK mode)
|Actual speed with LoRa mode depends on spreading factor|
|Frequency range||433.0750 to 434.7750 MHz|
|Number of channels||137||Channel step 12.5 kHz|
|Receiver sensitivity||< -133 dBm (LoRa mode 128chip)
< -115 dBm (FSK mode)
|Supply voltage||3.3 to 5.5 V||3.5 to 5.0 V recommended|
|Supply current||29 mA typ. (TX)
17 mA typ. (RX)
|40 × 29 × 6.2 mm||Not including the antenna connector|
|Modulation||2-FSK or LoRa||Selectable using command|
|Number of I/O||8|
The LoRa® Mark and LoRa Logo are trademarks of Semtech Corporation.
|Communication method||Serial communication||RS232C format|
|Synchronization||Asynchronous / UART|
|UART bitrate||19,200 bps|
|Flow control||Hardware: RTS/CTS pin
Software: Xon/Xoff not used
|Other parameters||Data length 8 bits, no parity, 1 (or 2) stop bits|
|Embedded low power radio modem (Version 3.0)|
|Serial communication (Version 2.0)|
|Command input and response timing (Version 1.0)|
|Evaluation Program Manual (Version 1.1)|
|DoC for CE (SLR-434M)|
Parts Change Notice (PCN)
|PCN2241001 (March 2022)|
|Low power long range radio modem, SLR-434M|
|Demonstration video of the SLR Development Kit|
|Introducing the evaluation software for the low power RF modem, SLR-434M|
|Differences between SLR-434M (434 MHz) and SLR-429M (429 MHz)|
Test Board: TB-SLR-RS2
The TB-SLR-RS2 is an RS232 interface board for testing SLR-434M module. It can connect to the COM port of PC or PLC through the D-Sub-9 pin connector. The board is equipped with transmit, receive LED, power supply terminal, main switch and interface to sub boards. The module can be used with coax extension cable to allow optimum placement of the antenna according to the environment. Click here for more details.
This testboard does not include the modem SLR-434M. Please order if necessary.
- Connection to PC COM port for data communication and module control
- Using RS232 cable, extension to tens of meters possible.
- Evaluation program available
- Interface to sub-boards for switching operation.
Using the interface on the TB-SLR-RS2, sub boards can be attached to allow switching and loop back tests to be performed.
Note: sub boards SB-SLR-DIO-A and SB-SLR-DIO-B are required to perform the switching and loop back function and are not included. Please ensure you order them if necessary.
[ Video ] [ SLR-434M ] - Introducing the low power long range radio modem.

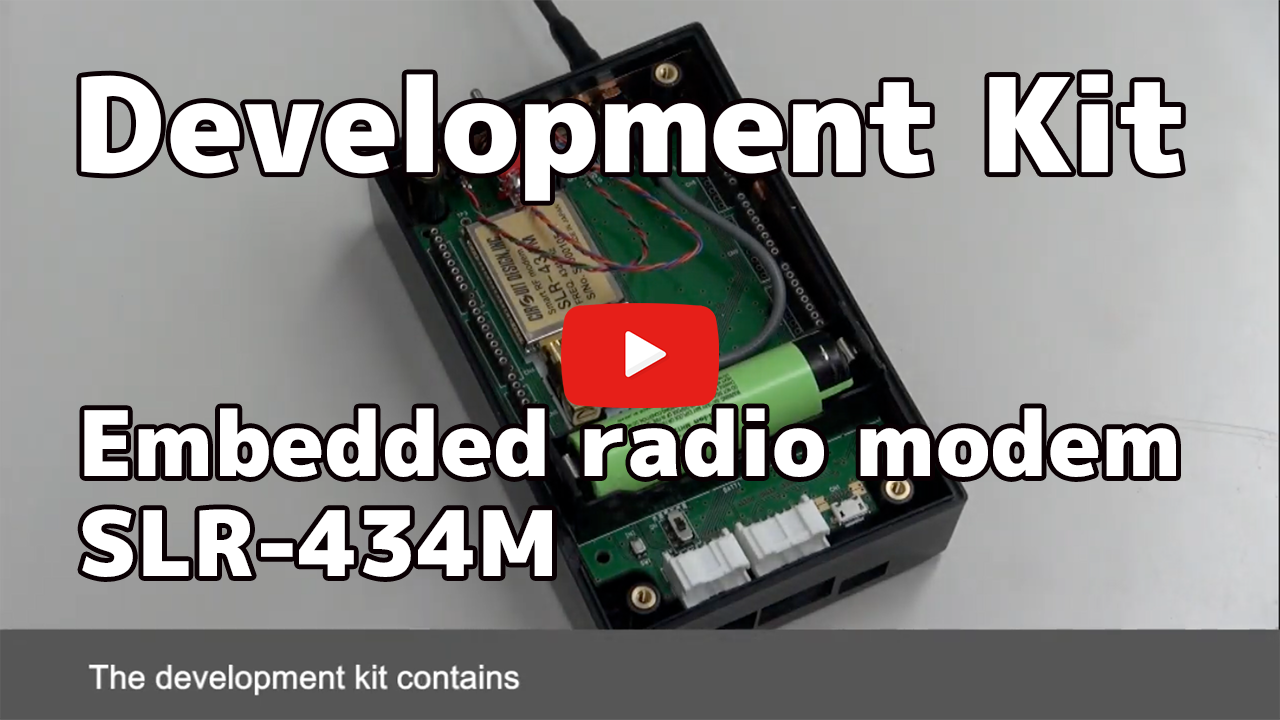

[ Video ] [ SLR-434M ] - Demonstrating the embedded radio modem SLR-434M: Development Kit
SLR-434M Application examples
SLR-434M System examples
SLR-434M Connection examples
[ Video ] [ SLR-434M ] - Introducing the evaluation software for the low power RF modem, SLR-434M
[ Video ] [ SLR-434M ] - Demonstrating serial data communication with the low power RF modem SLR-434M.
The system is capable of obtaining information about various machines in the factory while forwarding it to a central management system in order to visualise their status and in realtime. Collected data can be exported to CSV file and if a machine stops for any reason, it is possible to notify by email to the operator automatically. By using the long range SLR-429M LoRa modem operating in the 429 MHz band for machine monitoring, large scale cable installation for communication is not required. Such IoT system can be introduced in a short time and at low cost.
Gradual shifts in tilt can occur in natural or artificial ground slopes due to factors such as looseness and slipperage. The KANTARO was developed for capturing such shifts.
Measurements from the tilt sensor driven into the ground slope are taken at regular intervals. Changes in the tilt and the speed of change are determined and the level of risk evaluated. The data from the tilt sensor and information that could indicate imminent ground collapse can be transmitted quickly by radio making this useful in disaster prevention.
Company nameChuo Kaihatsu Corporation
Remote monitoring using long range wireless communication - System for monitoring sewage manhole pump
In the case where problems occur in infrastructure essential to daily living such as the sewage system's water level or pump, a swift response is required. The ICT sewage monitoring system that uses low power radio makes this possible. By using long range wireless communication for monitoring, it is possible to identify the source of the problem as soon as it occurs. This allows the sewage system to be operated and maintained safely.
